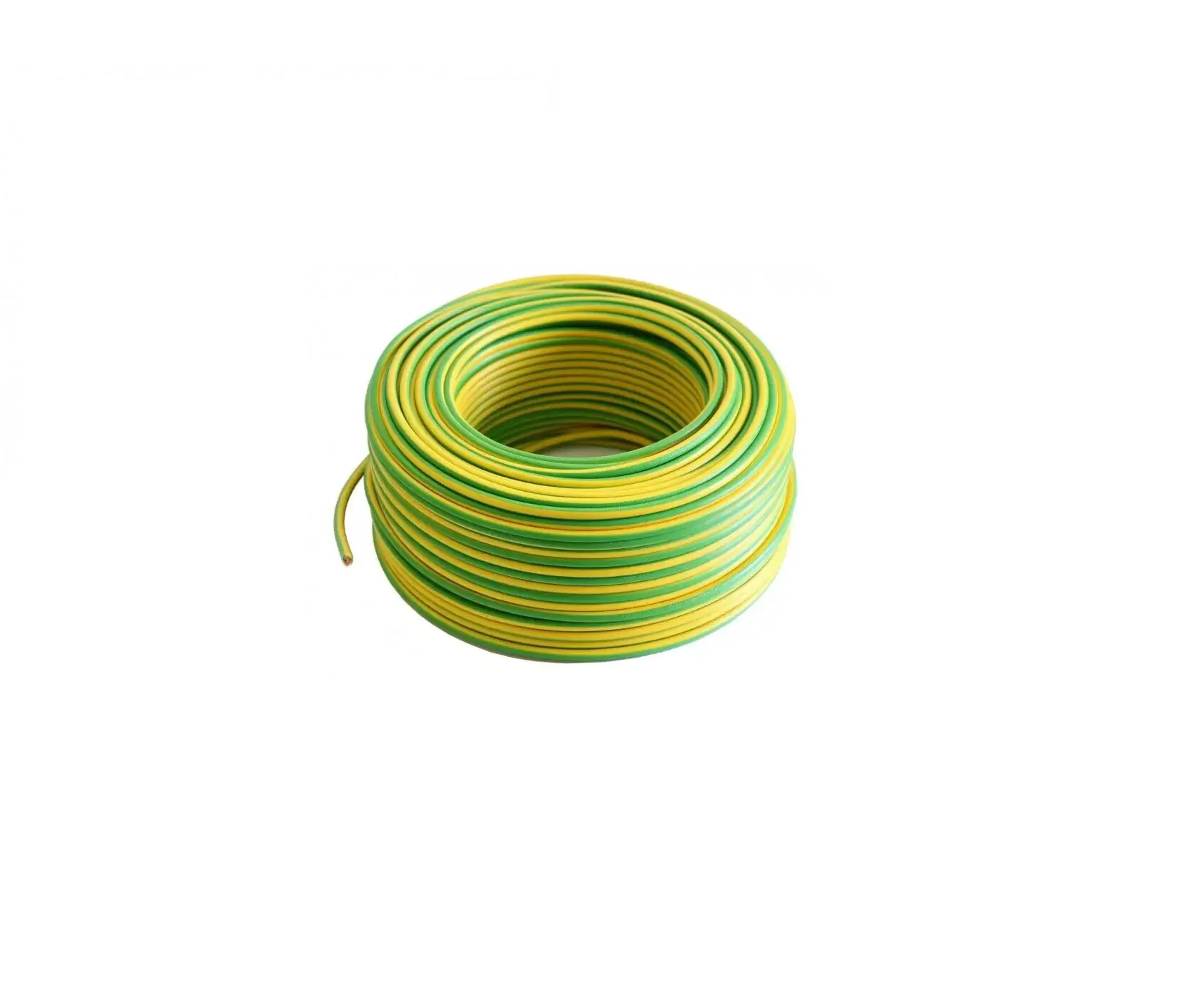

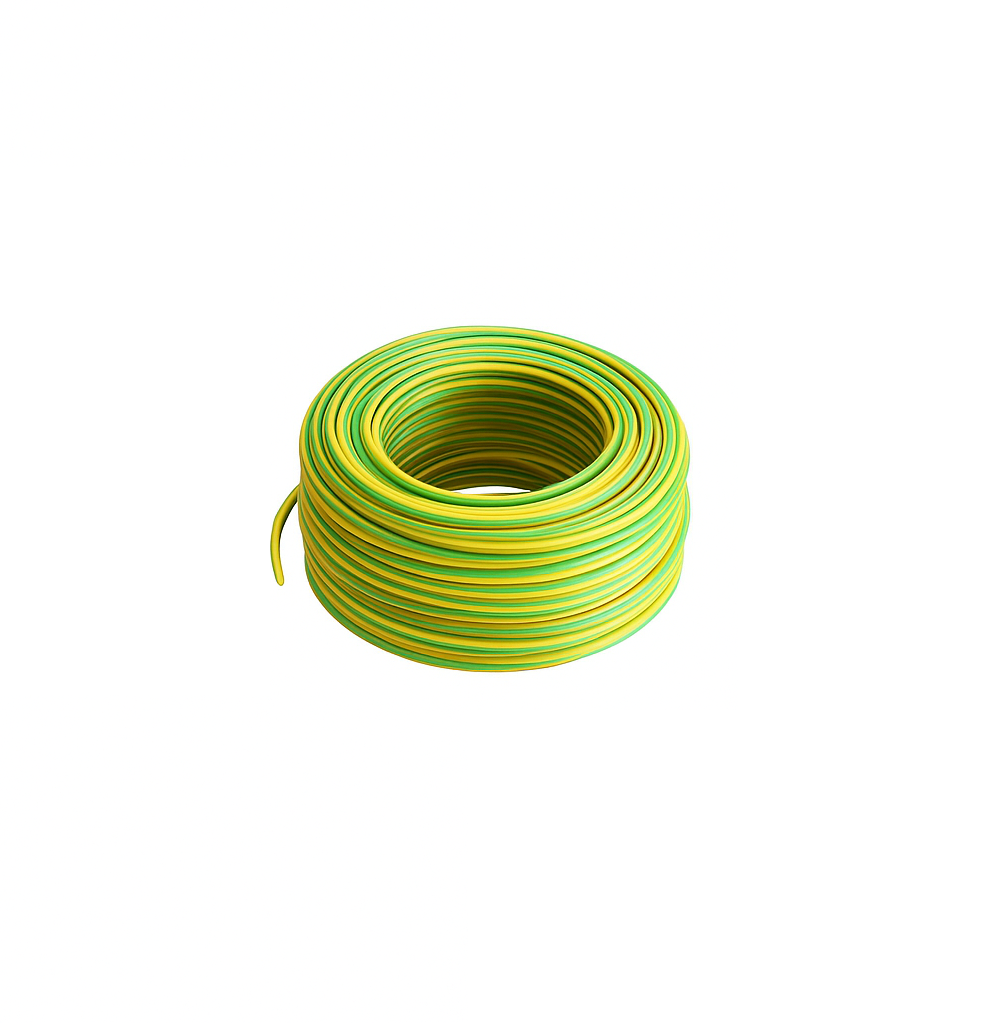

The PNTECH H07V-R 1×16mm² earth cable is a single-core copper conductor with robust PVC insulation, designed for safe and efficient electrical grounding and internal wiring of photovoltaic and industrial systems.

It ensures excellent conductivity, mechanical strength, and long-term reliability under continuous electrical load.

The cable complies with EN 50525-2-31 and is tested up to 1000V (max). It withstands temperatures up to 70°C and meets ROHS environmental standards.

Its structure provides high flexibility, minimum tensile strength ≥12.5 N/mm², and elongation at break ≥125%, ensuring safe and stable performance.

Technical Highlights:

• Conductor: Bare copper, 120/0.39 mm
• Cross-section: 16 mm²
• Outer diameter: 7.6 ± 0.2 mm
• Insulation material: PVC
• Rated voltage: 1000V max
• Temperature range: up to 70°C
• Conductor resistance (20°C): ≤ 1.15 Ω/km
• Insulation resistance (70°C): ≥ 0.0056 MΩ·km
• Test voltage: 2 kV, 5 min
• Environmental protection: ROHS compliant
